SP-404MKII

now with a SIDE-PIECE

Side-Piece is a custom OS layer for the SP-404MKII, with per-bus filters, lo-fi and EQ, four LFOs, a ducker, Euclidean lanes and a frequency chop. Side-Piece v0.1.0 is out as a free open beta. Build it in your browser from Roland's update 5.52 with the patcher. Try every feature in the simulator first, or put your own art on the screen with the Screen Loader.

Side-Piece

Side-Piece, an unofficial custom OS layer for the Roland SP-404MKII. It sits on top of Roland's own system and adds what we wish the sampler had.

Open beta v0.1.0, free. It's tested on our own SP-404MKII and by other people on theirs, and we rehearsed the recovery guide before release. We are still adding features and optimizing, so expect changes. Get it with the Side-Piece patcher, see what's in it and the known issues, and read the recovery guide before you flash.

Works with this official firmware

  • Screen LoaderSP-404MKII 5.52✅ Works
  • Side-PieceSP-404MKII 5.52🧪 In beta

Don't update your SP-404MKII's firmware to a newer version until the compatibility table lists it as ✅ works or 🧪 in beta. A new official version can arrive before we've made the mod work on it. Keep your own copy of the official firmware file you're running now. Already updated? The recovery guide shows how to go back.

What Side-Piece v0.1.0 does

The open beta. We are still adding features and optimizing, so details will change between versions.

  • Side-Piece FX screen. SHIFT + PATTERN EDIT opens it on a HOME menu, from the main screen or from SYSTEM. Pads, LOOP, REVERSE, GATE, BPM SYNC, the bank buttons and VOLUME keep working while it is open, and every other button takes you back to the main screen in one press. Try it →
  • FX stacks. Each of BUS 1 to 4 and DRY holds four effect slots in any order: a filter (low-pass, high-pass or band-pass, with strong resonance), lo-fi (sample-rate and bit reduction), a four-band EQ, chorus, phaser, a delay of up to 1 second or in time with the tempo, and a transient shaper. Try it →
  • Stacks on a pad. SHIFT + a pad switches a bus’s whole stack on and off, latched or only while you hold it. Try it →
  • Four LFOs. Sine, triangle, saw, square, sample and hold, smooth random, drunk walk, steps, a shape you draw, plus PRESS (follows your hardest pad), CHAOS and LORENZ. Free rate or tempo-synced, with depth, phase, skew, smoothing, retrigger, one-shot envelopes and fade-in. Aim them at any setting in the stacks, or at another LFO. Try it →
  • EQ per bus. Low and high shelves plus two mid bands with adjustable width. The knobs pick up from the current value instead of jumping. Try it →
  • Euclidean lanes. Four lanes that each play one pad in an evenly spread rhythm while a pattern runs, with steps, hits, rotate, rate, velocity, probability and gate length. Try it →
  • Frequency chop. Splits one pad’s sample into four bands (low, low-mid, high-mid, high) that add back up to the original, and puts the three upper bands on the next free pads. The source pad is replaced by its low band and there is no undo, so chop a copy. Try it →
  • Side-Piece time-stretch. An alternative to the built-in stretch that joins the pieces more smoothly and keeps pitch accurate, with a tempo and pitch override for every stretched pad. You can switch back to the built-in one any time. Try it →
  • Ducker, tempo pump and input level. A trigger pad turns the other buses down and they swell back, or the pump does it in time with the tempo. SHIFT + CTRL 1 and CTRL 2 set it from the main screen; SHIFT + CTRL 3 sets the input level. Try it →
  • Main-screen views. Info, pads, level meters, scope, LFO traces and a psychedelic view that follows the sound. Try it →
  • CPU guard. When the effects would take too much processor time, the newest slot is bypassed instead of the audio breaking up. The INFO page shows pad pressure, load and what was bypassed. Try it →

Effects and LFO settings are not saved over a restart yet. Everything above is a work in progress.

Side-Piece lessons

Hands-on lessons in the simulator. They run on the model only, so you can try each feature before you flash.

08In v0.1.0Check which firmware is runningSHIFT + pad 13, SYSTEM, VERSION tab: the screen that proves a Build is on the unit.2 minStart lesson →09In v0.1.0The Side-Piece opening imagesTwo Side-Piece opening images at power-on. Put them on your unit today as startup_1.bmp and startup_2.bmp, no flashing needed.3 minStart lesson →10SafetyGo back to Roland's firmwareThe recovery path: an SD card with Roland's file on its own, SHIFT at power-on, VALUE to update.2 minStart lesson →11In v0.1.0The FX screen and HOMESHIFT + PATTERN EDIT opens the Side-Piece FX screen on its HOME menu.4 minStart lesson →12In v0.1.0FX stacks: four slots per busEach pad bus holds four effect slots: filter, lo-fi, EQ, chorus, phaser, delay, transient shaper.6 minStart lesson →13In v0.1.0Switch a stack from a padSHIFT + a pad turns a bus's whole stack on and off, latched or held.4 minStart lesson →14In v0.1.0Four LFOsFifteen shapes, free or tempo-synced, aimed at any stack setting or at another LFO.6 minStart lesson →15In v0.1.0EQ per busLow and high shelves and two mid bands on every pad bus, with knobs that pick up.4 minStart lesson →16In v0.1.0Euclidean lanesFour lanes that each play one pad in an evenly spread rhythm while a pattern runs.5 minStart lesson →17In v0.1.0Frequency chopSplit one pad into four bands that add back up to the original.4 minStart lesson →18In v0.1.0Side-Piece time-stretch (setting only)Choose the stretch engine, and override the tempo and pitch of every stretched pad.3 minStart lesson →19In v0.1.0Ducker, pump and input levelA kick pad turns the other buses down for a moment, or the tempo pumps them.4 minStart lesson →20In v0.1.0Main-screen viewsThe main screen can show a big tempo readout, the pads, meters, a scope or the LFOs.3 minStart lesson →21In v0.1.0PSY1 view and HALFTIMEA main-screen picture that follows the sound.3 minStart lesson →22In v0.1.0The INFO page: pressure and loadHow hard the held pad is pressed, how busy the audio is, and how many slots the guard bypassed.3 minStart lesson →23In v0.1.0The CPU guardWhen the effects would take too much time, the newest slot is bypassed instead of the audio breaking up.4 minStart lesson →24In v0.1.0Buttons keep working on the FX screenLOOP, REVERSE, GATE, BPM SYNC and the bank buttons work in place; the rest take you to the main screen.3 minStart lesson →

Try it today

Tools

Free tools for the SP-404MKII. They run in your browser, and your files never leave your computer.

SP-404 Screen Loader

Live

Turn your own pictures or an animated GIF into the SP-404MKII's power-on images and screen saver. Download the SD-card folder as a ZIP, or write it straight to the card in Chrome or Edge.

Uses Roland's own opening-screen feature. No firmware involved.

Explore & Learn

32 voices, bus routing, resampling, pattern recording and 28 of the 46 effects, with synthesized kits. None of it is Roland's code or samples.

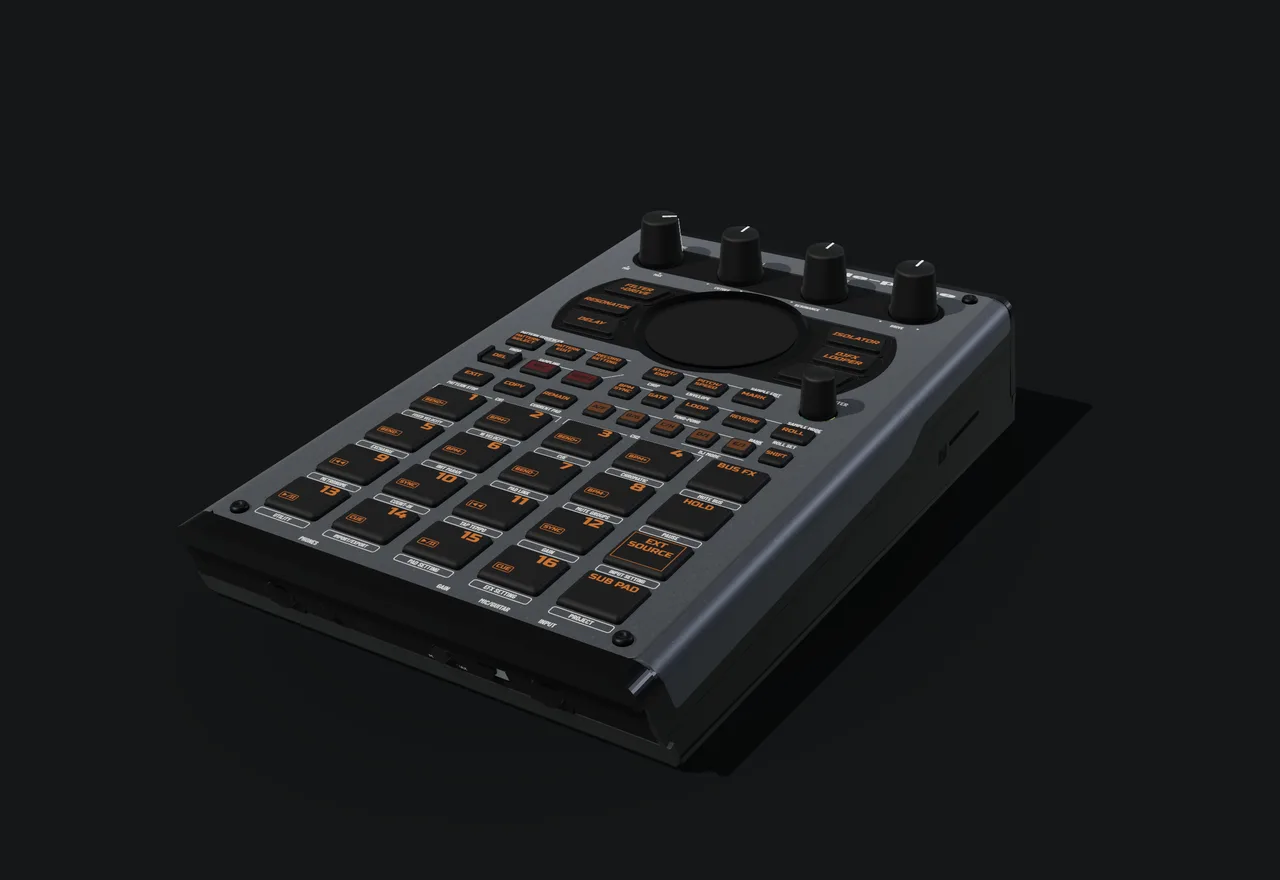

SP-404MKII simulator3D · 626 KB · loads on click

The simulator is written from Roland’s manuals and update notes. Start by making a track from the ten genre banks, then try Side-Piece.

The Side-Piece lessons show the features of the open beta. Each one is marked with the version it is in.

SP-404MKII lessons

Make tracks · ten banks, one genre each

Side-Piece · our firmware

Side-Piece · v0.1.0

11In v0.1.0The FX screen and HOMESHIFT + PATTERN EDIT opens the Side-Piece FX screen on its HOME menu.4 minStart lesson →12In v0.1.0FX stacks: four slots per busEach pad bus holds four effect slots: filter, lo-fi, EQ, chorus, phaser, delay, transient shaper.6 minStart lesson →13In v0.1.0Switch a stack from a padSHIFT + a pad turns a bus's whole stack on and off, latched or held.4 minStart lesson →14In v0.1.0Four LFOsFifteen shapes, free or tempo-synced, aimed at any stack setting or at another LFO.6 minStart lesson →15In v0.1.0EQ per busLow and high shelves and two mid bands on every pad bus, with knobs that pick up.4 minStart lesson →16In v0.1.0Euclidean lanesFour lanes that each play one pad in an evenly spread rhythm while a pattern runs.5 minStart lesson →17In v0.1.0Frequency chopSplit one pad into four bands that add back up to the original.4 minStart lesson →18In v0.1.0Side-Piece time-stretch (setting only)Choose the stretch engine, and override the tempo and pitch of every stretched pad.3 minStart lesson →19In v0.1.0Ducker, pump and input levelA kick pad turns the other buses down for a moment, or the tempo pumps them.4 minStart lesson →20In v0.1.0Main-screen viewsThe main screen can show a big tempo readout, the pads, meters, a scope or the LFOs.3 minStart lesson →21In v0.1.0PSY1 view and HALFTIMEA main-screen picture that follows the sound.3 minStart lesson →22In v0.1.0The INFO page: pressure and loadHow hard the held pad is pressed, how busy the audio is, and how many slots the guard bypassed.3 minStart lesson →23In v0.1.0The CPU guardWhen the effects would take too much time, the newest slot is bypassed instead of the audio breaking up.4 minStart lesson →24In v0.1.0Buttons keep working on the FX screenLOOP, REVERSE, GATE, BPM SYNC and the bank buttons work in place; the rest take you to the main screen.3 minStart lesson →25In v0.1.0Picture Source: SD CARD or PROJECTDevice-wide opening images and screen saver from the SD card, or stock behavior.3 minStart lesson →
